180 degree elbow turns a pipe line back on itself, so the flow runs the opposite way. Fitting World Trading LLC stocks them at our showroom in Nad Al Hamar, Dubai. As a result, piping contractors and plant teams across the UAE can collect them the same day.
First, choose long radius for smoother flow. Then choose short radius where space is tight.
180 Degree Elbows We Supply
- Long radius return bends: centre-to-centre 3D.
- Short radius return bends: centre-to-centre 2D.

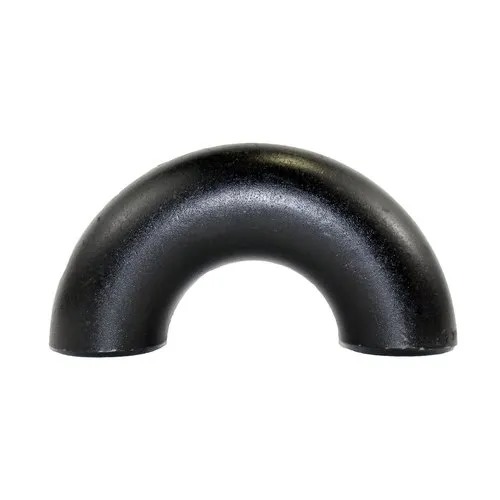

- Carbon steel: ASTM A234 WPB.

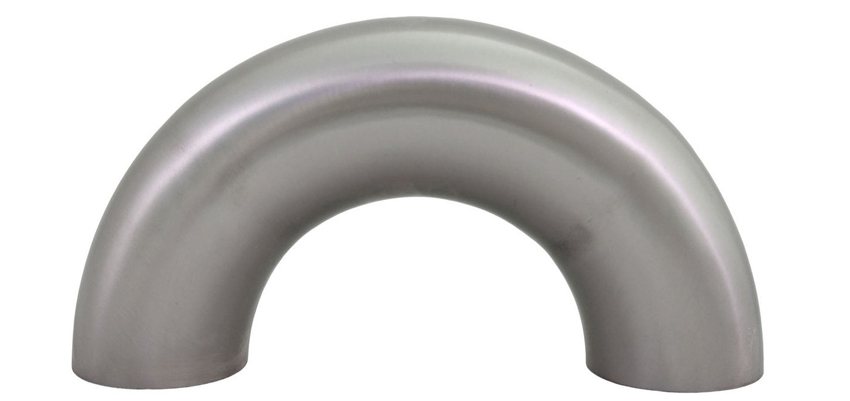

- Stainless steel: ASTM A403 WP304L / WP316L.
Why Choose Our 180 degree elbow
- Smooth flow: Even radius cuts pressure loss.
- Weld ready: In addition, bevelled ends.
- Accurate size: Made to ASME B16.9.
- Certified: Moreover, 3.1 mill certificates.
Sizes and Standards
| Parameter | Specification |
|---|---|
| Standard | ASME B16.9 |
| Radius | long (LR) and short (SR) |
| Sizes | 1/2″ to 24″ |
| Schedules | SCH 10 to SCH 160 |
Dimensions follow ASME B16.9.
Where to Use 180 degree elbow
- Heat exchangers: for example, tube and coil returns.
- Furnaces and boilers: similarly, heater coils.
- Process plants: in particular, compact loops.
- HVAC: finally, coil connections.
Also, we stock buttweld fittings for the same jobs.
Collect From Our Dubai Showroom
To order, visit Showroom No. 14, Nad Al Hamar, Dubai and collect your 180 degree elbow over the counter. For quotations or delivery across Dubai, Sharjah, Abu Dhabi and the Northern Emirates, call +971 4 285 1521 or message us on WhatsApp at +971 50 486 7233.
