Description
Our specialty valves cover the jobs that a standard ball or gate valve cannot do well. We stock diaphragm, solenoid, foot and plug valves at our showroom in Nad Al Hamar, Dubai. As a result, plant engineers and contractors across the UAE can find the right valve in one place.
First, tell us the fluid, the pressure and the pipe size. Next, choose the valve type from the list below. For example, a solenoid valve suits automatic water control, while a foot valve keeps a pump primed. Also, send a photo of the old valve if you are unsure.
Types of Specialty Valves We Stock
- Diaphragm valves: A rubber diaphragm seals the flow. Therefore, they suit slurries, chemicals and dirty water.

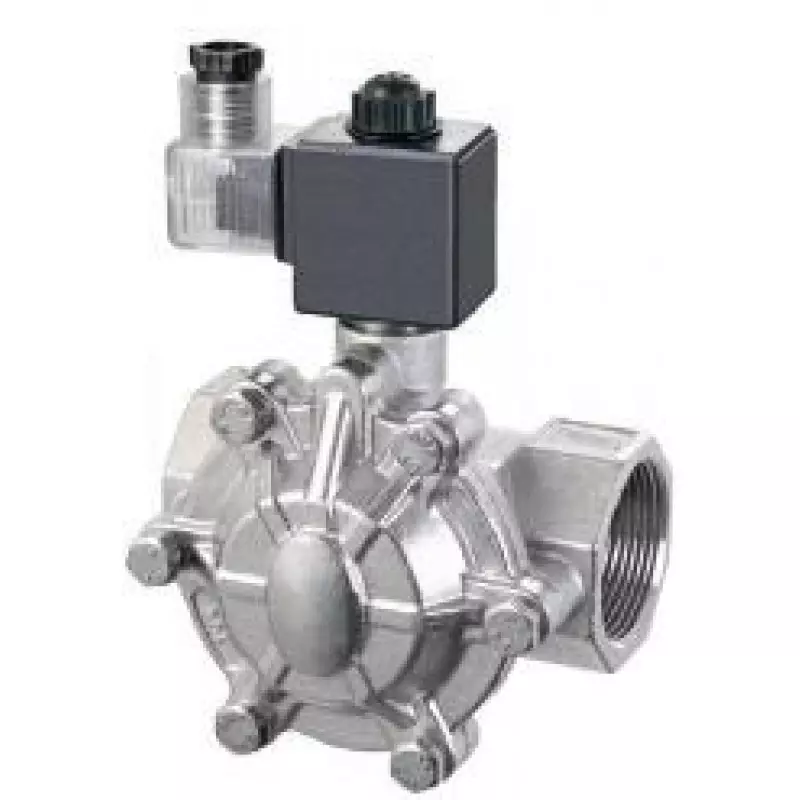

- Solenoid valves: An electric coil opens or closes the valve, in 24 V DC or 220 V AC, brass or stainless steel.
- Foot valves: These sit at the end of a pump suction line. They hold water in the line and strain out debris.
- Plug valves: A quarter turn opens or closes a tapered plug. Also, they suit gas and oil service.
Specialty Valves: Sizes and Materials
| Parameter | Specification |
|---|---|
| Sizes | 1/4″ to 12″, depending on type |
| Ends | Threaded BSP/NPT, flanged, wafer |
| Body materials | Brass, bronze, stainless steel, cast iron, ductile iron, PVC |
| Seals | EPDM, NBR, PTFE, Viton |
| Coils (solenoid) | 24 V DC, 24 V AC, 110 V AC, 220 V AC |
Where They Are Used
- Water treatment: for example, dosing and filter backwash.
- Pump stations: for instance, foot valves on suction lines.
- Irrigation: such as solenoid zone valves.
- Industry: in particular, chemical and slurry lines.
Order from Our Dubai Showroom
Firstly, visit Showroom No. 14, Nad Al Hamar, Dubai to collect from the counter. Alternatively, send your list to +971 4 285 1521 or on WhatsApp at +971 50 486 7233 for a same-day quote. You can also see our full valves range or read about solenoid valves.
