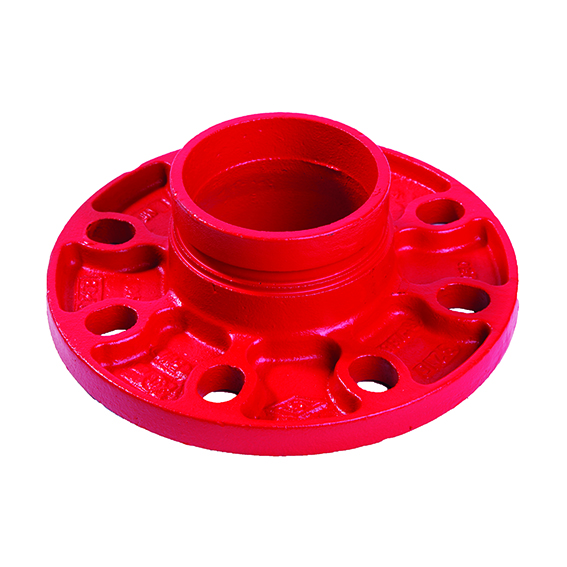

Grooved flange adapters connect grooved pipe to flanged valves, pumps and equipment without welding. Fitting World Trading LLC stocks them at our showroom in Nad Al Hamar, Dubai. As a result, fire protection and HVAC contractors across the UAE can collect them the same day.
First, check the flange drilling of the valve or pump, for example PN16 or ANSI 150. Then match the pipe size.
Grooved Flange Adapters We Supply
- Grooved flange adapters: ductile iron with a gasket.
- PN10 / PN16 drilling: for European flanges.
- ANSI 150 drilling: for American flanges.
- Gaskets and bolts: EPDM gaskets and bolt sets.
Why Choose Our Grooved flange
- No welding: Fit with a grooved joint.
- Quick install: In addition, faster than welded flanges.
- Easy service: Take apart for maintenance.
- Fire approved types: Moreover, for sprinkler systems.
Sizes and Standards
| Parameter | Specification |
|---|---|
| Material | ductile iron ASTM A536, painted red or orange |
| Sizes | 2″ (60.3 mm) to 12″ (323.9 mm) |
| Drilling | PN10, PN16, ANSI 150 |
| Gasket | EPDM |
The body follows ASTM A536 ductile iron.
Where to Use Grooved flange
- Fire sprinklers: for example, valves and pumps.
- HVAC: similarly, chiller and pump connections.
- Water supply: in particular, pump rooms.
- Plant rooms: finally, flanged equipment.
Also, we stock grooved fittings for the same jobs.
Collect From Our Dubai Showroom
To order, visit Showroom No. 14, Nad Al Hamar, Dubai and collect your grooved flange over the counter. For quotations or delivery across Dubai, Sharjah, Abu Dhabi and the Northern Emirates, call +971 4 285 1521 or message us on WhatsApp at +971 50 486 7233.
