Description

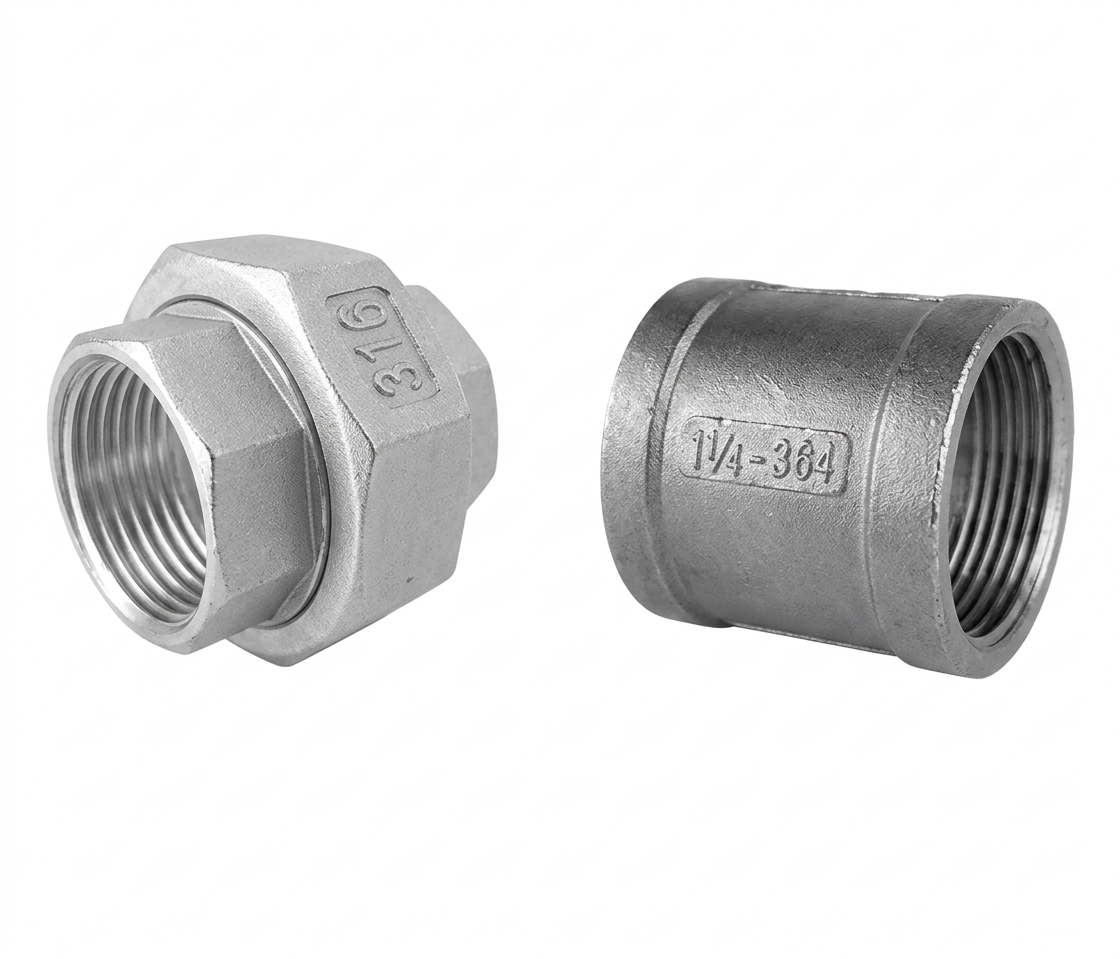

Pipe Couplings & Unions join two lengths of pipe with a strong, leak-free connection. In particular, we supply heavy-wall forged couplings and unions for high-pressure, high-vibration and high-temperature lines. Fitting World Trading LLC keeps ASME B16.11 and BS 3799 stock at our showroom in Nad Al Hamar, Dubai. As a result, plants, contractors and marine yards across the UAE and GCC can collect the same day.
We forge our pipe couplings and unions from ASTM A105 carbon steel and ASTM A182 F316L / F304L stainless steel. First, you can choose threaded ends (NPT to ANSI B1.20.1 or BSPT to BS 21) or socket weld ends. In addition, both styles come in 3000# and 6000# pressure classes. For high-pressure work, we also stock Bothwell high-pressure forged fittings.
Why Choose Our Pipe Couplings & Unions
- High pressure rating: Because the body is heavy and forged, it holds surge pressure up to Class 3000 (3,000 PSI) and Class 6000 (6,000 PSI).
- Clean CNC threads: We cut tapered NPT and BSPT threads with sharp crests and roots. Therefore, each joint engages tightly and holds sealant well.
- Deep socket weld pockets: Accurate bores keep the pipe aligned. At the same time, they leave the correct expansion gap before fillet welding.
- Solid forging: Die forging removes porosity, sand and casting voids. Because of this, the fittings are safe for gas and hydraulic service.
Pipe Couplings & Unions: Sizes and Standards
| Parameter | Specification |
|---|---|
| Standards | ASME B16.11, BS 3799, MSS-SP-79 / 83 / 95, DIN 2999 |
| Pressure ratings | Class 2000, 3000 (3000#), 6000 (6000#), 9000 |
| Sizes | 1/8″ NB to 4″ NB, in stock at our Dubai showroom |
| End connections | Female NPT, female BSPT, socket weld (SW), male threaded |
| Materials | Carbon steel ASTM A105 / A105N; stainless steel ASTM A182 F316 / 316L, F304 / 304L |
| Certificates | Full traceability with EN 10204 Type 3.1 mill test certificates (see the ASME B16.11 standard) |
Where Pipe Couplings & Unions Are Used
- Hydraulic and lube oil lines: for example, heavy equipment piping, compressor discharge lines and hydraulic power units.
- Chemical and sampling systems: for instance, instrument take-offs, impulse piping and chemical injection manifolds.
- Steam and boiler piping: such as steam traps, boiler blowdown lines and condensate drain headers.
- Fire protection: in particular, high-pressure sprinkler mains and deluge valve trim.
Collect from Our Dubai Showroom
Firstly, visit us at Showroom No. 14, Nad Al Hamar, Dubai to collect your order over the counter. For bulk schedules, contractor packing or same-day delivery across the UAE, call +971 4 285 1521 or message us on WhatsApp at +971 50 486 7233. You can also browse our full range of threaded fittings.
