Foot Valve

Foot Valve supplied by Fitting World Trading LLC from Showroom No. 14, Nad Al Hamar, Dubai. Comprehensive stocks, standard certifications, and prompt delivery across the UAE.

SKU: FWT-2154-FOOTVALV Category:

Description

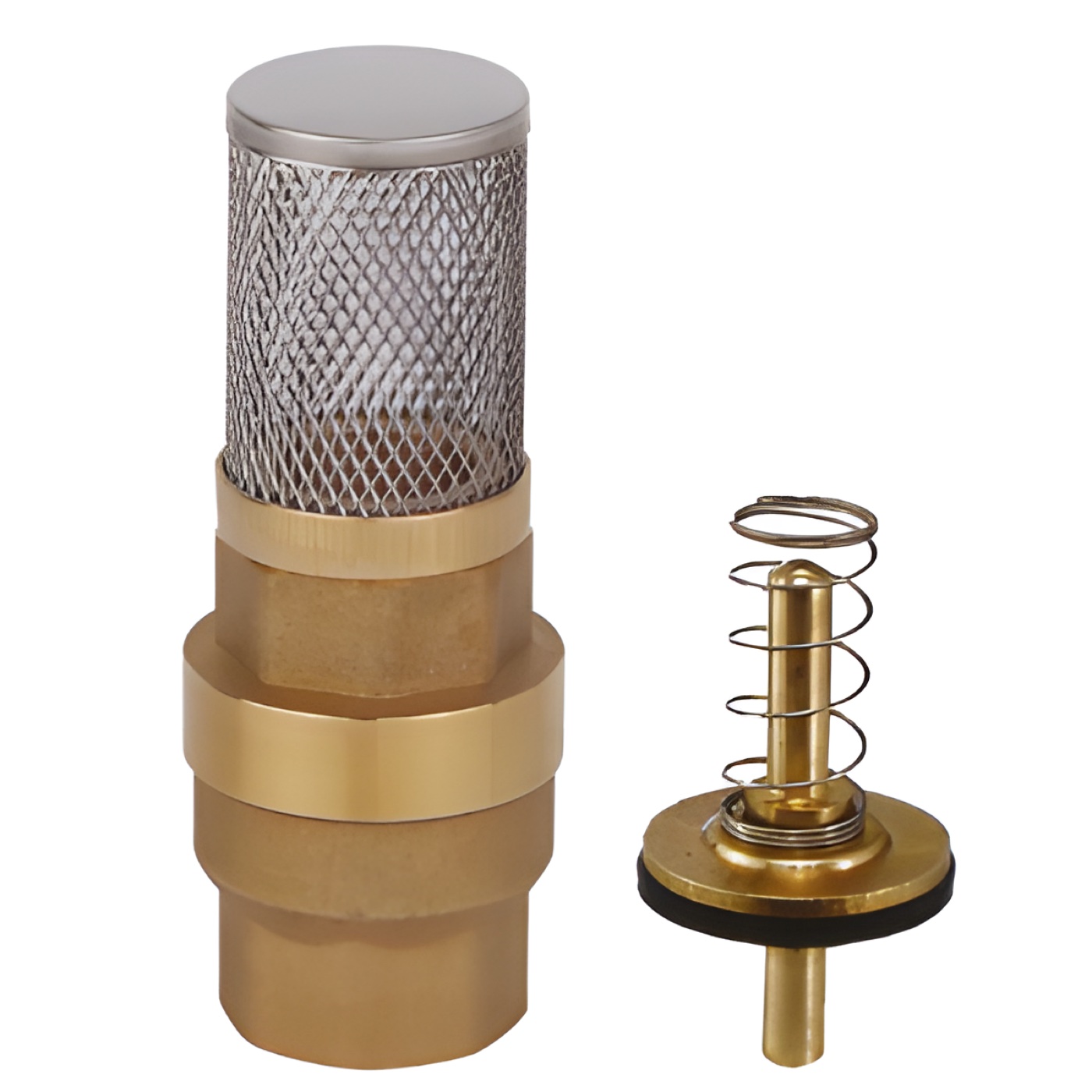

A foot valve sits at the bottom of a pump suction pipe, under the water. It is a non-return valve with a strainer around it. As a result, it keeps water in the pipe when the pump stops, so the pump stays primed. We stock foot valves for water and marine pumps at our showroom in Nad Al Hamar, Dubai.

First, match the valve size to the suction pipe, not the pump inlet. Next, choose the end: threaded for small pumps, or flanged for larger lines. Finally, choose bronze for seawater, cast iron for fresh water, or stainless steel for chemicals. Also, clean the strainer during routine pump checks.

Why Choose Our Foot Valve

  • Keeps the prime: Above all, the non-return disc stops water draining back.
  • Built-in strainer: It stops stones and debris entering the pump.
  • Easy starts: Because the pipe stays full, the pump starts quickly.
  • Material choice: In addition, bronze, cast iron and stainless suit most water.

Foot Valve: Sizes and Materials

ParameterSpecification
BodyBronze, cast iron, stainless steel 316, PVC
EndsThreaded BSP/NPT, flanged PN16 or JIS
Sizes1/2″ to 8″
StrainerPerforated or mesh, stainless or brass
Disc sealRubber or metal

Where They Are Used

  • Water pumps: for example, well and tank suction lines.
  • Marine: for instance, bilge and seawater pumps.
  • Irrigation: such as river and pond intakes.
  • Fire pumps: in particular, suction from tanks.

Order from Our Dubai Showroom

Firstly, visit Showroom No. 14, Nad Al Hamar, Dubai to collect from the counter. Alternatively, send your list to +971 4 285 1521 or on WhatsApp at +971 50 486 7233 for a same-day quote. You can also see our flanged butterfly valves, all marine valves or read about check valves.
