Description

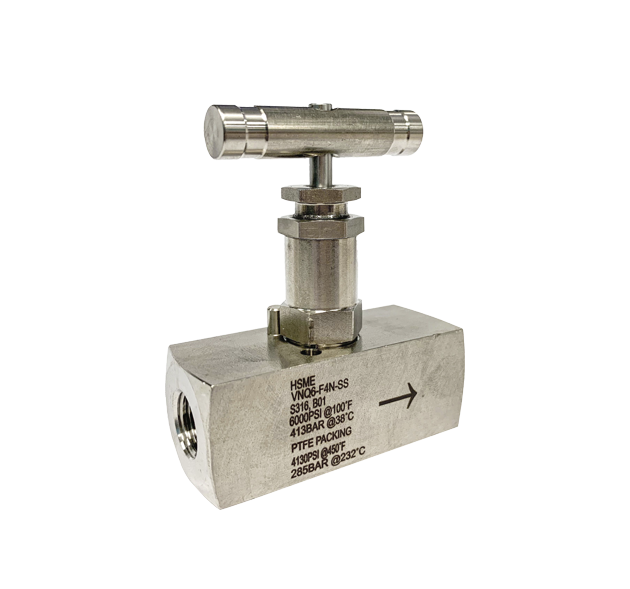

A needle valve controls small flows very precisely. It has a slim, tapered stem that moves slowly in a matching seat. As a result, you can open it a little at a time and set the exact flow you need. We stock stainless steel needle valves at our showroom in Nad Al Hamar, Dubai.
First, choose the end connection, for example 1/2″ NPT female or BSPT male. Next, choose the pressure rating: 6000 psi suits most instrument lines. Finally, choose a straight body for in-line use, or an angle body to save space. In addition, we can supply two-valve and three-valve manifolds on request.
Why Choose Our Needle Valve
- Fine control: The tapered stem gives precise, repeatable settings.
- High pressure: Bar stock stainless bodies handle up to 6000 psi.
- Tight shut-off: The metal seat closes firmly when fully turned.
- Corrosion resistant: In addition, stainless steel 316 suits seawater and chemicals.
Needle Valve: Sizes and Materials
| Parameter | Specification |
|---|---|
| Body | Stainless steel 316; brass and carbon steel on request |
| Ends | NPT or BSPT, male or female |
| Sizes | 1/4″ to 1″ |
| Pressure | Up to 6000 psi (414 bar) |
| Patterns | Straight, angle; gauge (multiport) on request |
Where They Are Used
- Instruments: for example, gauge and transmitter isolation.
- Sampling: for instance, oil and chemical sample points.
- Hydraulics: such as test points and bleed lines.
- Marine: in particular, engine room gauge boards.
Order from Our Dubai Showroom
Firstly, visit Showroom No. 14, Nad Al Hamar, Dubai to collect from the counter. Alternatively, send your list to +971 4 285 1521 or on WhatsApp at +971 50 486 7233 for a same-day quote. You can also see our sounding cocks, all marine valves or read about needle valves.
