Description
Camlock couplings connect and disconnect hoses in seconds, with no tools. A male adaptor fits into a female coupler, and two cam arms lock it in place. As a result, they are the standard for tankers, pumps and transfer hoses. We stock camlocks in all common types and sizes at our showroom in Nad Al Hamar, Dubai.
First, choose the type for each end: male or female, thread or hose tail. Next, choose the material. For example, aluminium suits water and fuel, stainless steel 316 suits chemicals and food, and brass suits fuel and seawater. Finally, check the gasket material against the fluid you will pump.

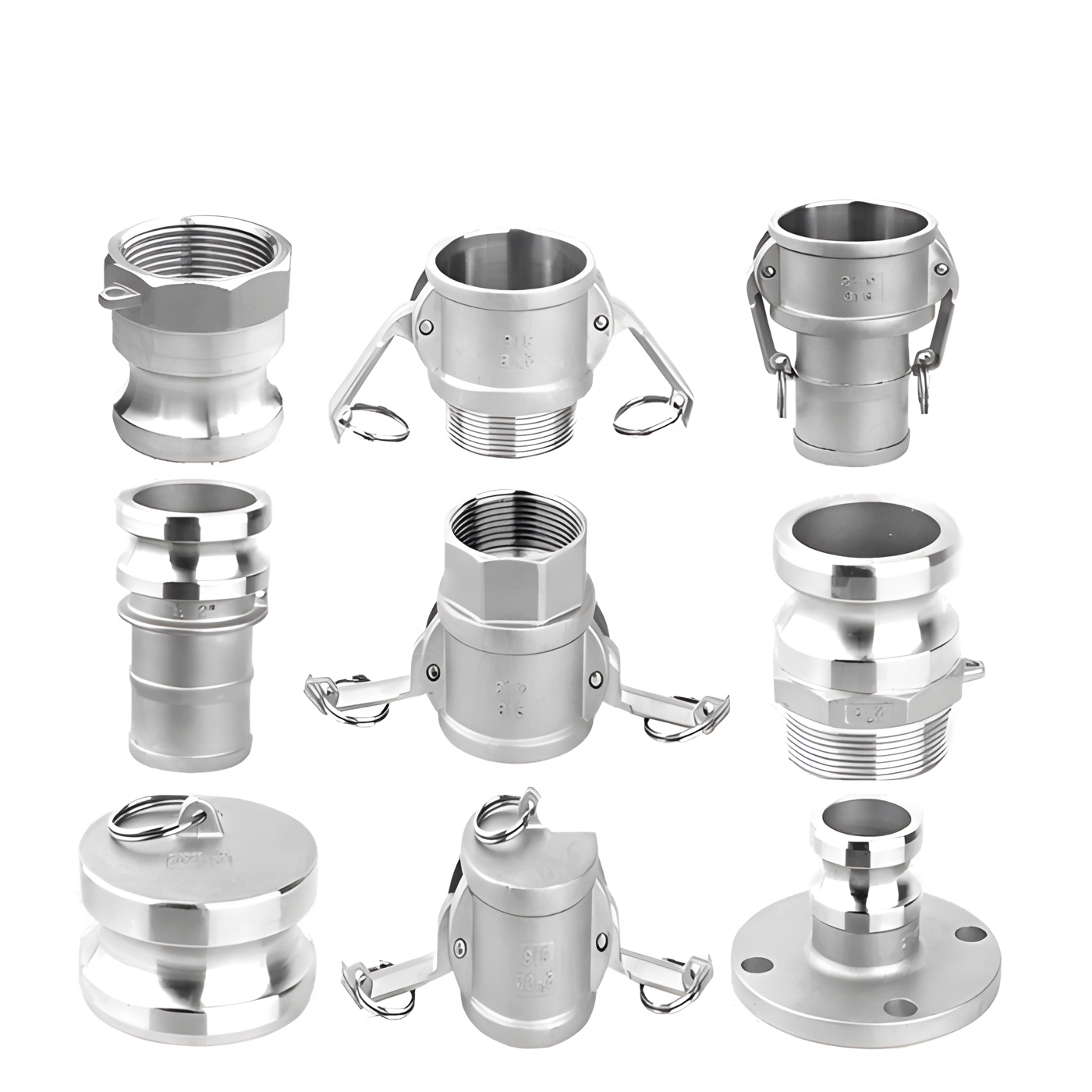

Camlock Couplings Types A to DP
- Type A and B: Type A is a male adaptor with a female thread. Type B is a female coupler with a male thread.
- Type C and E: Type C is a female coupler with a hose tail. Type E is a male adaptor with a hose tail.
- Type D and F: Type D is a female coupler with a female thread. Type F is a male adaptor with a male thread.
- Type DC and DP: A DC dust cap closes a male adaptor. Also, a DP dust plug closes a female coupler.
Camlock Couplings: Sizes and Standards
| Parameter | Specification |
|---|---|
| Standard | A-A-59326 (formerly MIL-C-27487), EN 14420-7 |
| Sizes | 1/2″ to 6″ |
| Materials | Aluminium, stainless steel 316, brass, polypropylene |
| Threads | BSP or NPT |
| Gaskets | NBR (standard), EPDM, Viton, PTFE |
Where They Are Used
- Fuel and oil: for example, tanker loading and diesel transfer.
- Water and dewatering: for instance, site pumps and tankers.
- Chemicals: such as dosing and drum transfer.
- Marine and agriculture: in particular, bilge and irrigation hoses.
Order from Our Dubai Showroom
Firstly, visit Showroom No. 14, Nad Al Hamar, Dubai to collect from the counter. Alternatively, send your list to +971 4 285 1521 or on WhatsApp at +971 50 486 7233 for a same-day quote. You can also read our camlock selection guide, see our hoses or read about hose couplings.
